种类与简绍：Purpose and introduction

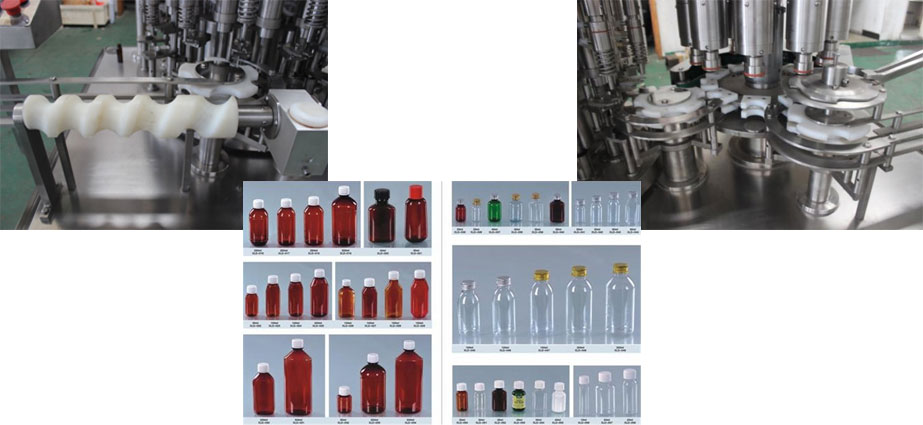

滤油机符合于对30-500ML类别夹层玻璃容器、重金属瓶的罐装的设备粘口。按照往来账户往来式气缸参与罐装的设备，电磁振动器振动送盖，是可不还可以轧盖(重金属式)或旋盖(重金属盖)粘口，是可不还可以和组选的制作制作工艺的设备相连接构造制作线，另外是可不还可以选用百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

的特点：characteristic

装量更准确，杜尽漏滴。缺瓶不灌装生产线。 直流变频变速。 主動彰显计算药理作用。 整套装置均按GMP特殊要求设计方案。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技术工艺数据/technical parameters：

型号 model	NQGX30-500
适于尺寸规格Cutting dimension	30-500ml
生产加工专业能力Production capacity	80-200瓶/分（罐/分钟的英文）80-200 bottles/min (cans/min)
灌装生产线精度等级 Filling accuracy	≤±1%
电源开关 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机器总重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
