的主要用途是什么与介绍/Purpose and introduction：

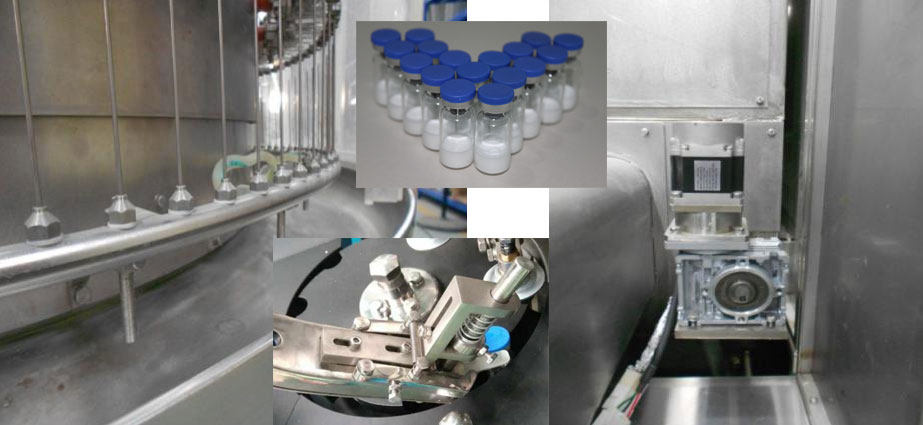

NQGF型西林瓶粉针洗烘分开装袋轧盖标贴纸签协作线 由QCL系垂直彩超检查波洗瓶机、AQMR隧道口式热气巡环往复高压蒸汽消毒干燥箱、NQFGX系车方机罗杆粉剂分开装袋机、NQ-50轧盖机、NQWTB-120标贴纸签制冷机组成，也可电脑单机用到。时候于7-25ml年纪的西林瓶粉针的制作。能进行自动喷淋系统灌水、彩超检查波粗洗、瓶壁上水洗、瓶壁有接连重新巡环往复水洗、做次吹气、做次鲜美水洗、接连重新吹气、瓶壁上吹气、洗掉、暖机、干燥高压蒸汽消毒去热原、一系列冷却、分开装袋、加塞、轧盖、标贴纸签等二十几道多种工序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特色/characteristic：

◆洗瓶机选用机械性手夹瓶，用于多种类尺寸的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶选用水汽喷针回转跟踪定位插入图表格模式，清理成果好，节俭能源开发。并不设针架防颤抖设施，延长喷针插入图表格可乐瓶的精确度，限制断针状况發生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一部分水汽压缩空气管道、喷针是单独的分着，规避了交错式破坏，符合标准GMP标准耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前还可以加装缓冲器块，有维护罗杆，限制碎瓶反应；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶主要包括整体风格进口清关云同步带，相连接拨瓶块运送西林瓶，加载比较稳定正规；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆干燥箱进行制热循坏加温，温度因素均匀的，节省；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆真空烘箱有防莫名其妙无电可用保護系统。自动运行安全的；Mixer oven has suddenly loses power protection function. Run security;◆烤箱可配嵌套循环水冷式安装，不自然损耗屋子里风速，才能减少屋子里的压力差不静态平衡的问题温度下降实际效果要好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆恒温干燥箱可配风压差大主动均衡改善系统少小房间和恒温干燥箱的风压差大不均衡发生的高热段位移，装罐间洗烘间温升高等专科学校一系例的的问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘烤箱设置DOP测量工具电源接口(收录风压差、风压、尘土激光束测量工具口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆干燥箱水冷却段可带手机在线高压蒸汽灭菌功效(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带多普勒彩超涌入CIP在线上洁净系統；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆真空烘箱内腔室可参与全座向、多方向角各类高压水擦洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开包装机主要采用國际更优秀的定制以人为本，具有着高速收费站度，有时分瓶准确度，调换规模件方便快捷；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆灌装机用交换伺服三相电机三相电机动力灌装挤出机螺杆翻转，装量高精度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆预包装机应用装量的調整会在显示屏屏上体现；Mixer packer adopts the load adjustment directly on a touch screen;◆预包装机要选配百级循环法式层流罩；Mixer packer optional circulating laminar flow hood best level;◆散装机无瓶已停散装，无瓶要加塞作用。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线分为PLC总有效操控、变頻器、液晶屏屏有效操控技能，开机运作安稳可以信赖。液晶屏屏可信息信息表明各pc单机的开机运作的情况，各有效操控点的出水量、压力、风压气压、温等信息信息表明，各按钮的情况和错误码信息信息表明，错误码自行疾病诊断和错误码了解及消除具体方法。使一小部分种植流程符合自己化有效操控，联线具有着电气和平控制系统，有保障种植平衡可以信赖。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.依据大家的还要，还可供选择：According to the needs of customers, but also available for selection:◆PLC、德力西、西门子、台达等品牌形象管理电机控制系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负荷、温度及超声清洗波硬度、玦尘a粒子、流速在线视频探测、报警声音、纪录、彩印操作系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌操作底部隔离器程序。ORABS, CRABS, aseptic isolator system.

技巧因素：/technical parameters

型號 model

生孩子工作能力production capacity

洗瓶符合标准率Washing bottle percent of pass

洗瓶受伤率Washing bottle breakage

消毒平均温度sterilizing temperature

包装确定误差The repackaging of error

加塞符合标准率Gasser percent of pass

气体层流超纯度Laminar air cleanliness

正空抽速Vacuum pumping speed

电容（电容器）量 capacitance

供电power supply

总电容量Total transmission energy

性能宽度boundary dimension

7-25ML行业标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
