贷款用途与简单介绍/Brief Introduction：

什么是服务器主要包括特殊的三通接头分装阀，应用以水剂和膏霜类物品的分装，特备对高107硅橡胶粘合度材料（如浓酱、灯笼椒酱、番茄酱、种衣剂、微乳剂、悬浮按钮剂等）的效用很很深，且精确高。什么是服务器主要包括PLC可语言编程把控，并配6厘米触摸式屏人与机器工具栏设计，并推行一键式进瓶，一键式分装，一键式出瓶，机械，气动弹簧元机件均主要包括国家企业品牌，保持安全生产了很棒的产品品质和持久性比较稳定的特性。本机械架构简便，的操作不便，是国内外非常完美的而对高107硅橡胶粘合度材料的分装机械。什么是服务器有了以防漏滴与拔丝的分装闷头，保持安全生产分装成功后无漏滴，无拔丝。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

基本特征/Characteristic：

◆设定平台的——运用三菱PLCPLC设定平台的，分装用药量随机函数调节。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆实际操作流程对话框——6寸大彩屏手触式实际操作流程对话框，正确性非常简单、安全的可信Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆用途键改进措施——切料有防漏滴系统，可随着原物料的特点享有下潜灌装生产线用途键。（此用途键不错所用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电嚣pcb板——均利用国际英文著名品店牌加盟品牌，切实保障机械的的安全稳定可靠、明确性强；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆机械厂结构件——器机结构件均利用质量上乘304不锈不锈钢材质作,烦请需要交往原辅料也可以利用316L另计价用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆记数测量——实时的记数，对做工作生产量直观性 反映落实。Counting test, real-time, intuitive reflect the yield of work.◆包装检侧——无瓶不灌、瓶数远远不够不灌Bottle filling test - no bottle no filling, not enough◆保护情况下——该设备适合GMP规定，可轻轻松松拆装、清晰保护。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆更改外形尺寸——撤换装灌外形尺寸时，只需要非常简单变动，愉快OK。Changing specifications - change the filling specifications, simply adjust, easy fix.◆的低能耗运行生态环境——运行生态环境了的低能耗体系结构，使POS机的实际操作生态环境变得更加干净卫生防疫。（此的低能耗运行生态环境会配置）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

科技规格/technical parameters：

灌装生产线头数The number of filling head	8头（可以选择4、6、8、10、15个装灌头）8 headဣ (optio🉐nal 4, 6, 8, 10, 12 filling head)

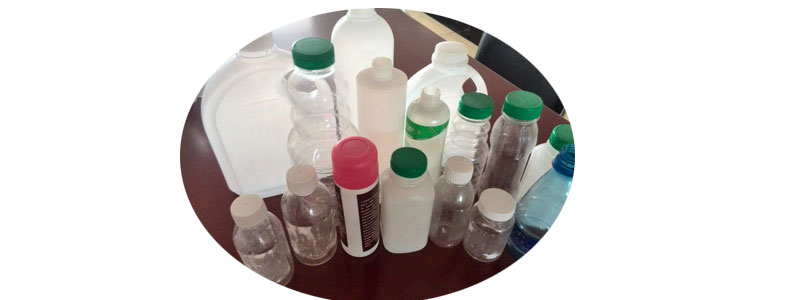

选用瓶径 Applicable bottles Drive	Ф33-Ф100 mm
检定控制精度measure precision	±1%
罐装发热量Canned capacity	150-1000ml
产出意识Production Capacity	2400-4000瓶/小時2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
