应用场景与简洁/Brief Introduction：

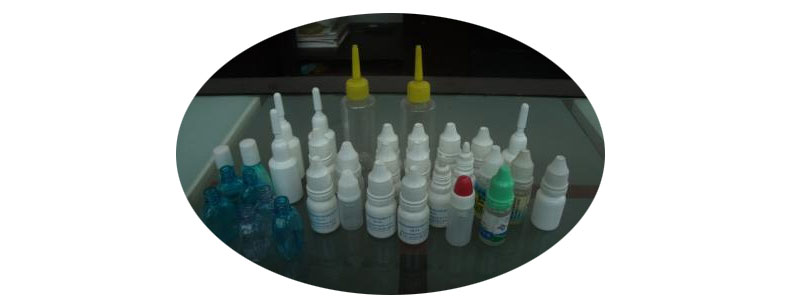

机器可应用在于2-30ML所有布料材质的扇形扁形橡胶或玻璃纸瓶的眼药粉分装、智能电子烟油等小标准容量分装.机器由高计算精度凸轮轴轴量程培训机构具备量程等分盘标记上塞上盖;1度凸轮轴轴齿轮传动系统具备旋盖头的升降调节;恒转矩旋盖;消化吸收泵压力容器检验分装;触碰屏操纵.无瓶不分装,不带内塞,外盖.具标记准确,齿轮传动系统平缓,呵护盖子,压力容器检验准.操作的比较简单等优缺。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

共同点/Characteristic：

◆微pc场景人物风格的设定在、装量精度、实操便利。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机速比可去无极变速定频调压。the mainframe running speed is stepless frequency conversion.◆出时产自動化学发光法控制。the product quantity can be controlled. ◆多样发动机故障提醒功能键(如低空气压力。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自主停电基本功能，对任意铁轨诞生间隔无包装、无内塞状况可自主停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技木规格/Main Technical Parameters：

采用规格型号Filling Volume	2-30ml
生產技能Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装线高精准度Filling Precision	≤±1%
电压 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
半自动上塞率Stoppering rate	≥99%
氧气减压阀Air Supply	1.3 m3/h    0.4-0.8Mpa
功效 Power	2.0 kw
广州POS机重量Weight	550 kg
看上去尺寸Dimension	1800*1000*1500mm
