应用领域与概述/Brief Introduction：

超声波焊接机组为10-20ml内服液粘液装罐产品产出线中的主要产品。是由洗瓶、烘箱处理一身机和装罐产品塑封一身机所根据，能主动到位内服液瓶的洗瓶、烘箱处理、装罐产品和塑封等姿态，是内服液产出工厂更志向的生活配套产品，彻底符合追求GMP追求。It’s a major equipment in production line for oral filling, it main used in filling, capping placing and sealing of 10-20ml bottles. Tracking filling, cap automatically conveying by electromagnetic oscillator, automatic sealing , no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP

优势/Characteristic：

◆装量准确度，远离渗漏。装罐表面粗糙性强。High filling accuracy.◆变频式无及可控硅调压，生孩子时间随意调节，必选择其他的生孩子时间。Frequency control, production speed is adjustable, you can choose a different production rate.◆其它电嚣pcb板均选择国外有名的的品牌。All electrical components are imported famous brands.◆会自动彰显筛选性能。Automatically countting function.◆控制应用岛国西门子PLC，抗影响，工作上安全。Controlled by Mitsubishi PLC◆性能参数安稳，保障清洁便。Stable performance, easy maintenance.◆一整台机器的长相选取SUS304不锈碳钢作、与材料接受位置选取316L不绣钢304。一整台机器的全按GMP要设置。Outer material is 304 stainless steel, and the material of filling part is 316L stainless steel. The machine is completely designed according to GMP requirements.

能力基本参数/technical parameters：

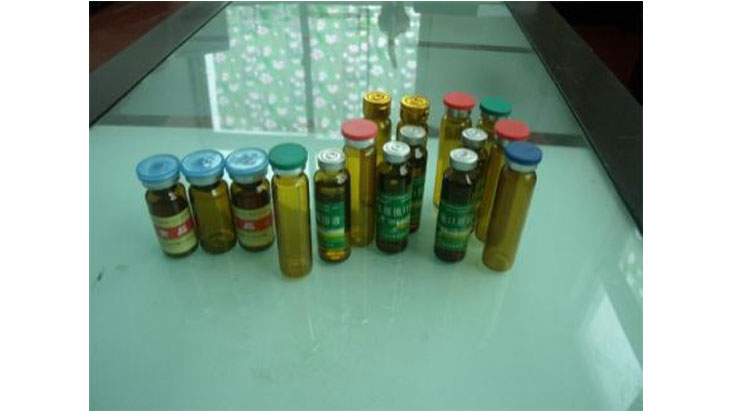

支持标准/Bottle size	10-20ml
生产的工作能力/Capacity	60-90瓶/分钟左右/60-90bottles/min
烤干温湿度/Dryer tempreture	100-300°
使用河水量/Water wastage	0.5m3/h
水净化水耗量/Purifying water consumption	0.3m3/h
装量高精准度/Filling precision	≤1%
电/Voltage	380V/50Hz
工率/Power	33KW
产量线总长/Dimension	3500×1500×1600mm
