领域与简单介绍：/Purpose and introduction

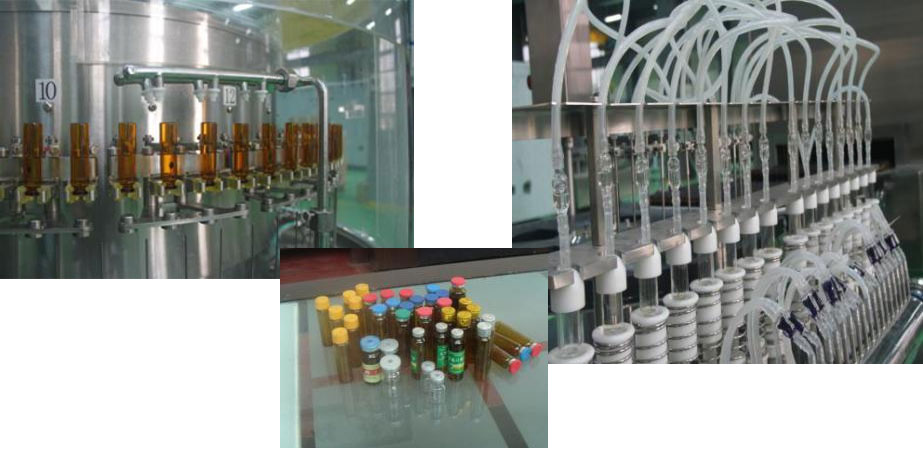

服用液洗烘灌轧联调线由开式超音波波洗瓶机、铁路桥式暖风 无限循环高压蒸汽过滤除菌烘烤箱、服用液灌装线线轧盖机等构成，适于于 5-30ml 等各个规 格服用液瓶的产出。可完工对进口药品产出中安瓿瓶淋水、超音波波清洁工作、冲水、充 气、吹干高压蒸汽过滤除菌、待冷却、灌装线线、轧盖等艺布骤的联调作业。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

共同点:/characteristic

◆洗瓶机分为机戒手夹瓶，常用多样标准的水瓶座；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶分为气水喷针导杆定位添加图片办法，清洁工作作用好，降低生物质能源。并可设针架防发抖传动装置，挺高喷针添加图片水瓶座的更准度，才能减少断针的现象发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整个的雾气管道、喷针是完全独力分开用，杜绝了相交破坏，满足GMP规则想要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前改装缓存块，有自我保护罗杆，可以减少碎瓶效用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选用整个国外搜集带，拼接拨块气力输送机口服药液，正常运作保持稳定是真的吗In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱运用红外线微波加散热片，不锈钢材质的微波加散热片双重微波蒸汽热处理加热摄氏度不光滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机可供选择配陶瓷图片泵、不锈钢304泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖功能键。Pieces filling without bottle filling, no bottle no rolling function.◆整线选取PLC总调节、直流伺服设定器、触模屏调节枝术，程序使用维持能信。触模屏可展现各单机手游的程序使用模式，各调节点的出水量、大气压力、压力、湿度等展现，各转换开关模式和告警展现，告警自行珍断和告警讲解及判定步骤。使整研发的过程 高达会自动控制调节，联线有三机测控平衡点装置设备，确定研发均匀能信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.基于潜在客户的必须，还可供标准配置：According to the needs of customers, but also available for selection:◆PLC、施耐德开关、三菱PLC、台达等国产品牌管理体统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气有压力、温度及超声心动图波承载力、颗粒粒子束、空气流速在线视频的检测、短信报警、登记、彩印系统化。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作消毒器软件。Mixer ORABS, CRABS, aseptic isolator system.

技术工艺产品参数：technical parameters

可用規格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌精准度Filling accuracy(%)	≤ ± 2.5
装罐头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖通过率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
